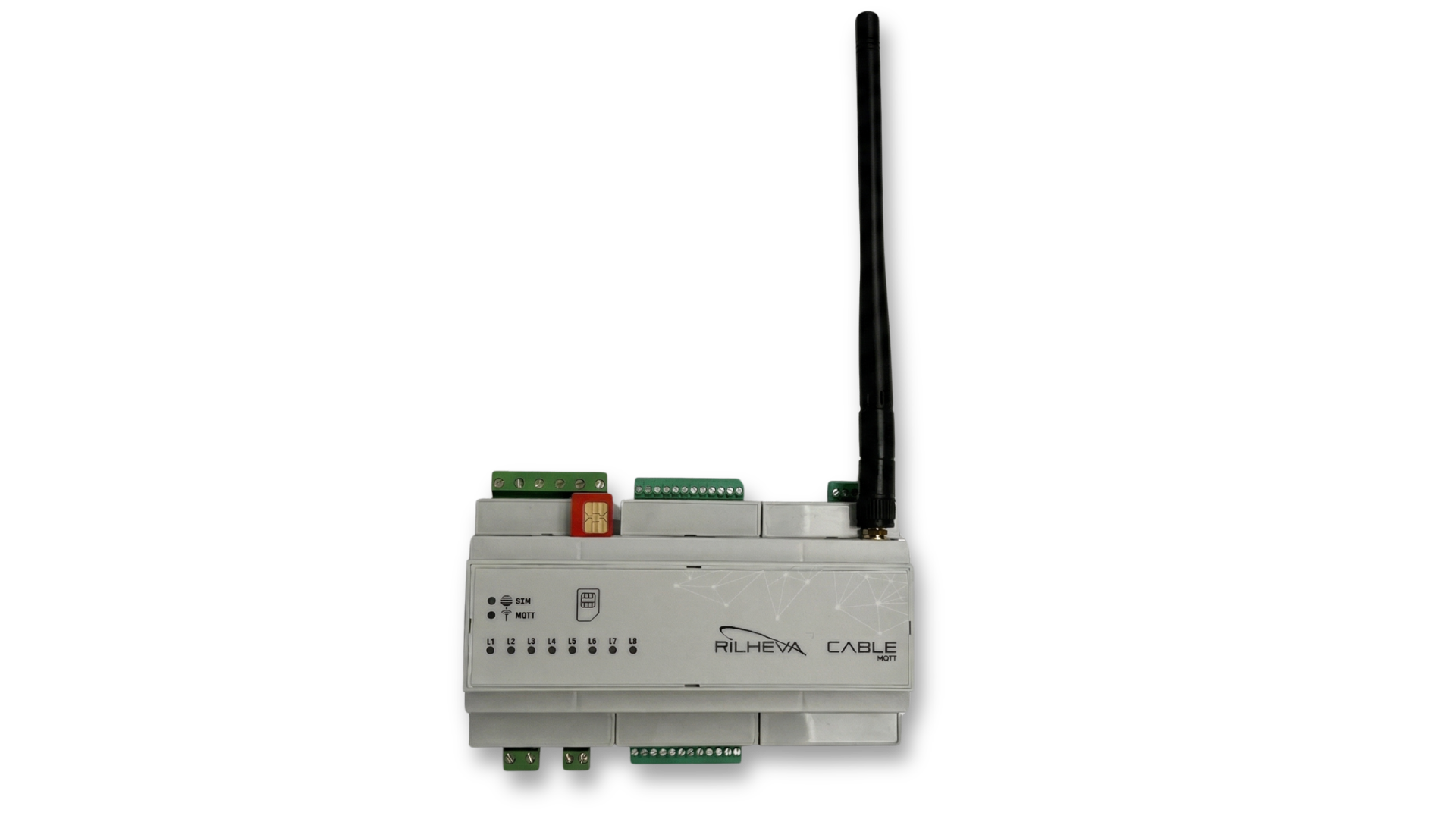

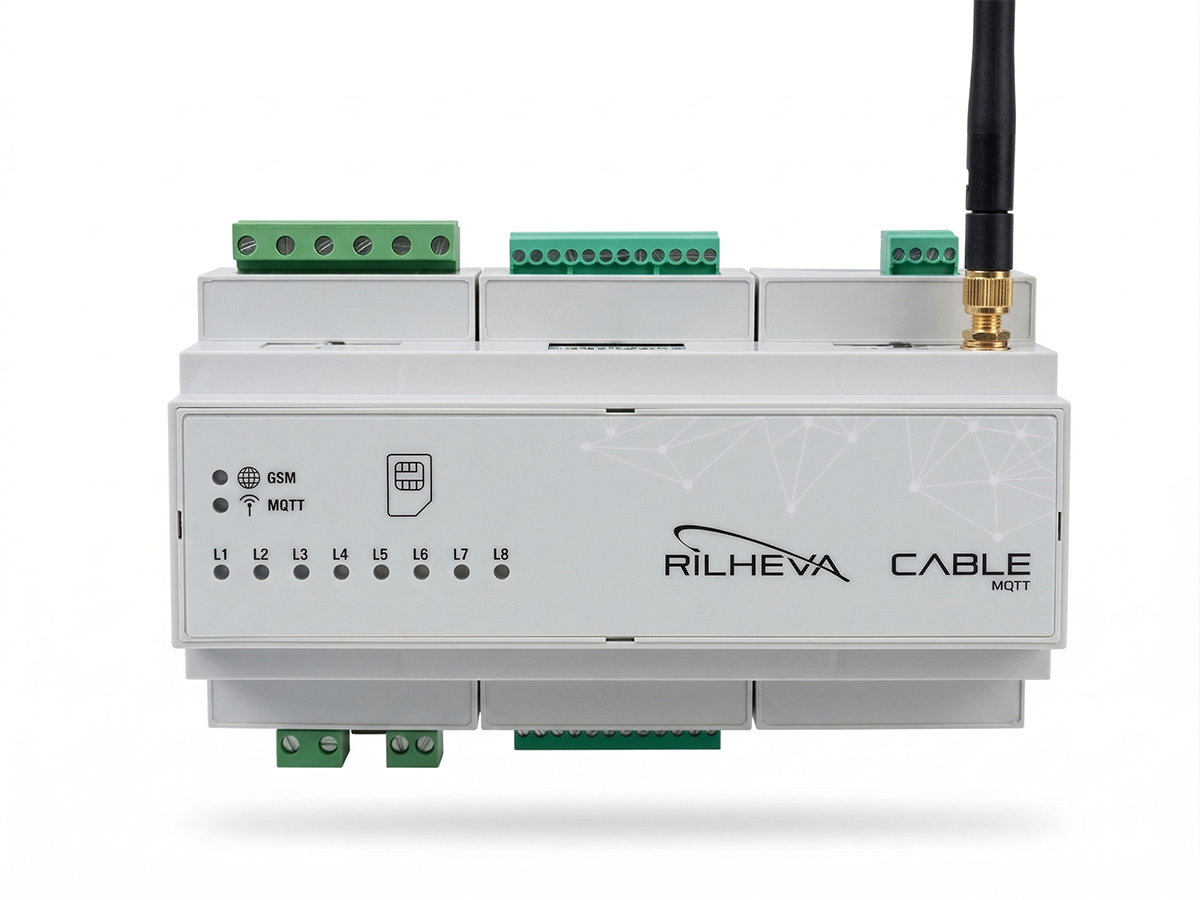

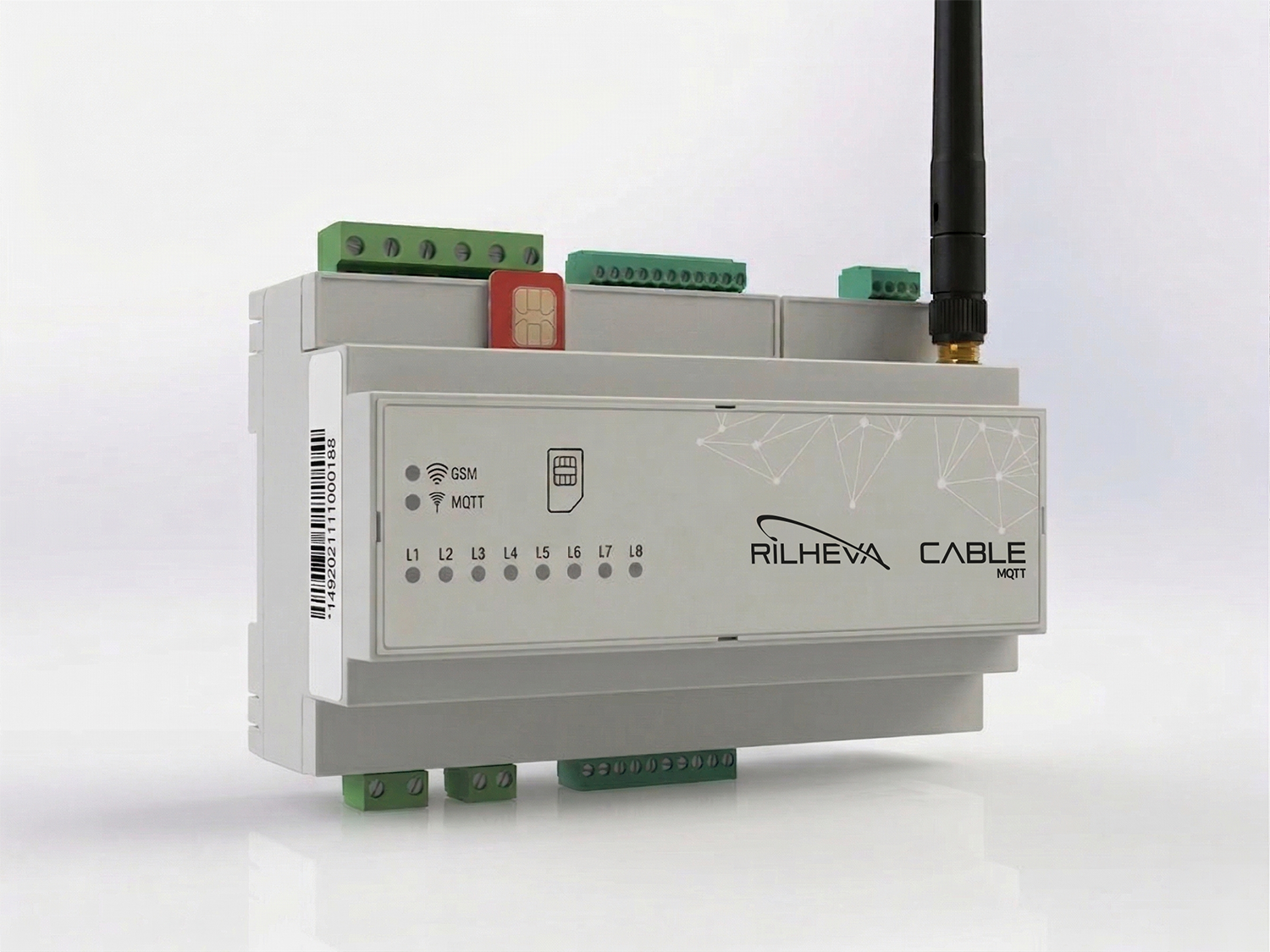

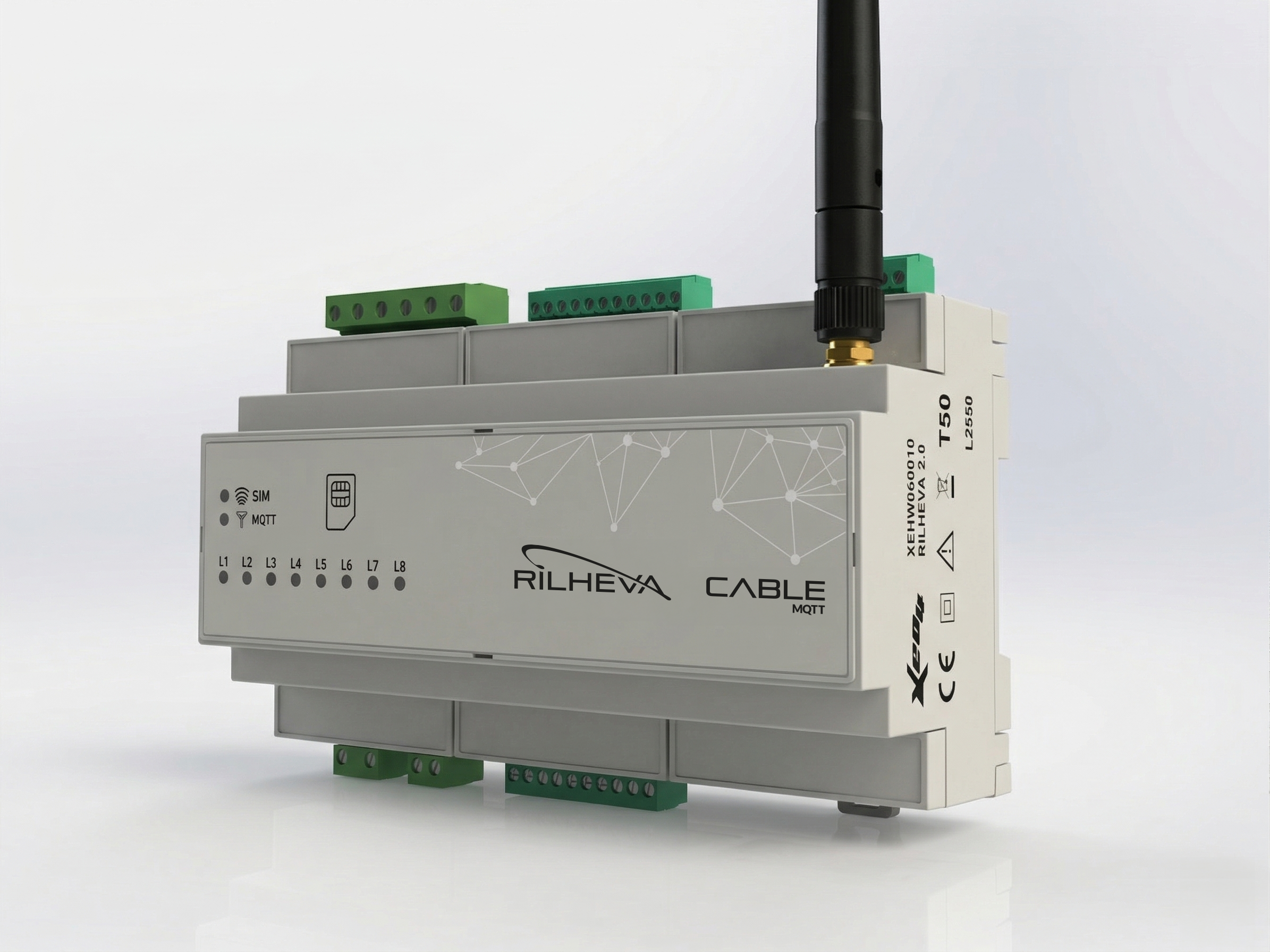

RiILHEVA CABLE MQTT:
The ALL-IN-ONE device for remote monitoring and control

1
2
3
4
1

Hardware and Connectivity

2

Onboard Intelligence

3

Configuration and Diagnostics

4

Maximum Interoperability

01. Hardware and Connectivity

  • Dimensions: Ultra-compact (9 DIN modules)

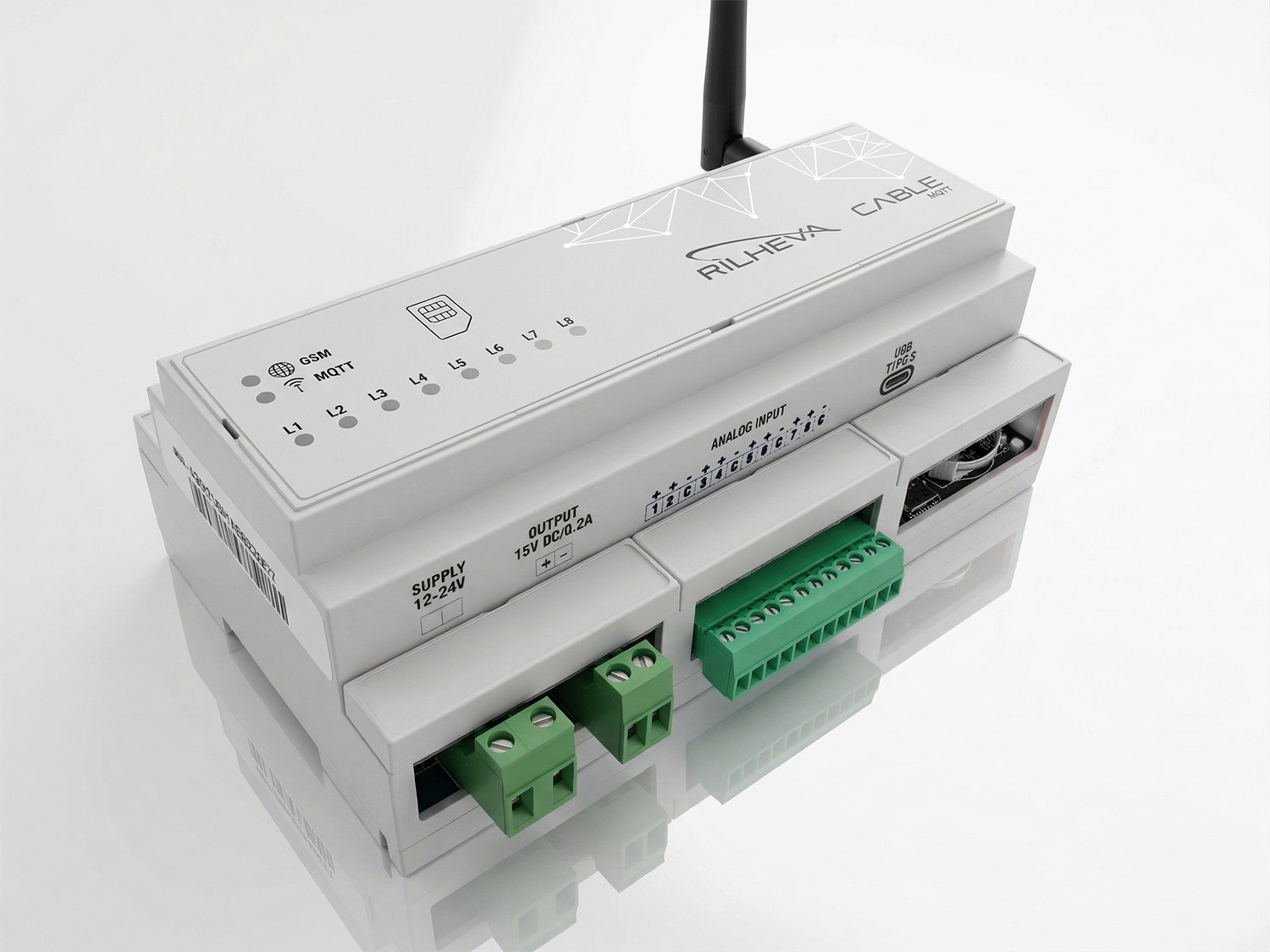

  • Power Supply: Extended industrial range 12–24 VAC / VDC
  • Integrated I/O:
    • 8 Analog Inputs (AI)
    • 8 Digital Inputs (DI)
    • 3 Relay Outputs (DO)
  • Communication: Integrated 4G modem + RS485 port (up to 200 Modbus RTU registers)
Request information

02. Onboard Intelligence: Edge & Security

  • Edge Computing: Signal filtering and bandwidth optimization (event-based transmission)
  • Data Logging: Internal buffer up to 50,000 samples (data continuity ensured)
  • Protocol: Encrypted MQTT (maximum security toward any broker)
  • Synchronization: RTC with backup battery for accurate logging
Request information

03. Configuration and Diagnostics

  •  Setup: Fast USB-C connection via PC software
  •  Maintenance: LEDs and DIP switches for immediate local diagnostics
Request information

04. Maximum Interoperability

  • Total Freedom: Designed for Rilheva IIoT Platform, but open to all market SCADA systems with MQTT brokers
  • + 20 years of experience in RTU design, built into a single device
Request information
